Features

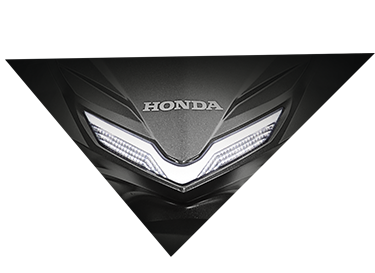

NEW FIERCE LED HEADLAMP*
For those swanky riders of the dark, the ultra stylish LED gives you a clear view of the road

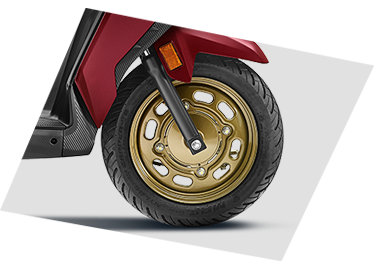

TELESCOPIC SUSPENSION AND FRONT 90/90-12 TUBELESS TYRE
The new DIO is equipped with a Telescopic Suspension for less shock and more awe while riding. Its bigger front wheel helps to negotiate with the nastiest potholes while providing a better road grip & excellent handling conditions

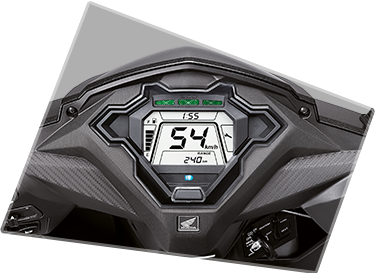

NEW FULLY DIGITAL METER*
Get precise measures from real-time mileage to average mileage. Track updates about ‘distance to empty’ on the go.
NEW FULLY DIGITAL METER*
Get precise measures from real-time mileage to average mileage. Track updates about ‘distance to empty’ on the go

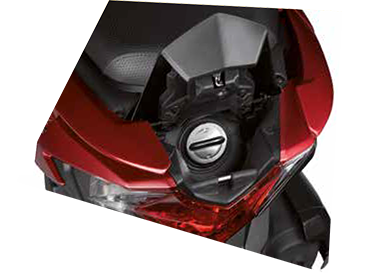

EXTERNAL FUEL LID
No more hassles of lifting your seat. Take a stand for refuelling, without having to leave your seat.

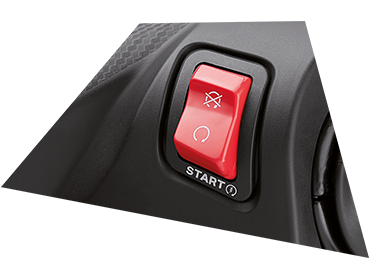

ENGINE START/STOP SWITCH
Switch to the better way of riding. Start and stop the engine with just a click.

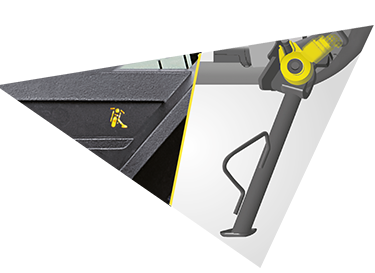

SIDE STAND ENGINE CUT OFF^
A revolutionary system that cuts off the engine when the side stand is engaged.

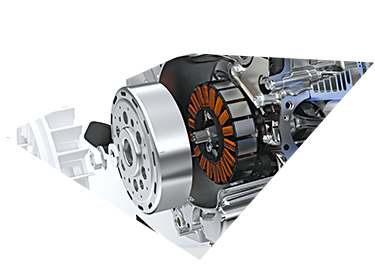

SILENT START WITH ACG
The ACG starter in your Honda DIO removes gear meshing for a start as silent as a wild cat on the hunt. It also helps to reduce engine maintenance.

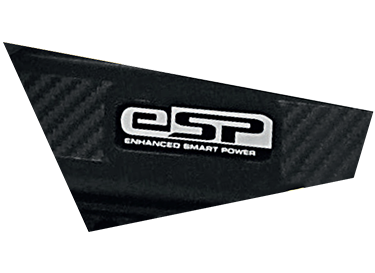

eSP TECHNOLOGY
Get ready for one hell of a ride with the new Honda DIO. It is powered by the globally acclaimed Enhanced Smart Power Technology for a silent start, more mileage and less friction for the best riding experience.
PROGRAMMED FUEL INJECTION
The sensor based PGM-FI system constantly injects optimum fuel with air which delivers an efficient combustion and results in consistent power output and more mileage.
HET BS VI ENGINE
The advanced HET engine delivers an unmatched performance and also contributes to a cleaner environment.

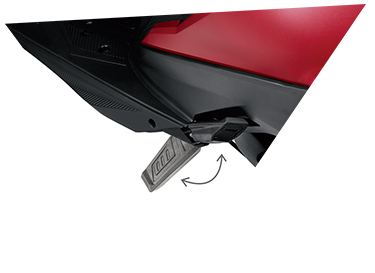

RETRACTABLE PILLION FOOT STEP
For the ones sitting behind, the ride now becomes a ‘pillion times’ more comfortable.

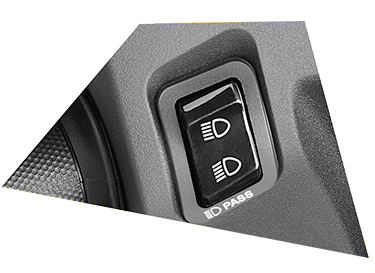

PASSING SWITCH
Its your ride’s way of saying ‘give me way’. Speak on the go without saying a word.

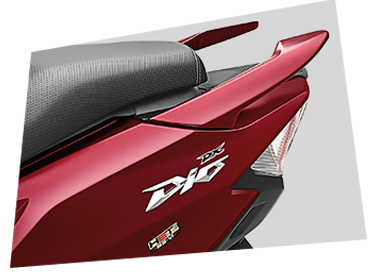

SPLIT GRAB RAIL
Better grip meets gripping design. The cool and edgy looking split grab rail in the new Honda DIO makes it look like a complete stunner.

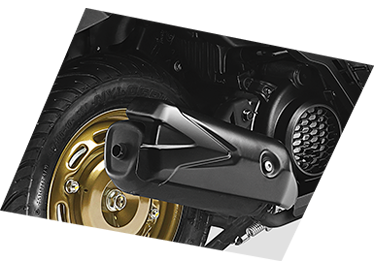

STYLISH MUFFLER PROTECTOR
The stylish muffler protector in DIO makes it look really cool while protecting the feet from feeling the heat

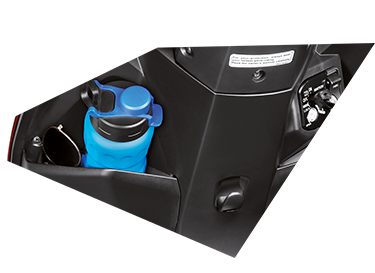

NEW FRONT POCKET
Store your essentials, be it your sipper or your glares. Oh goodness gracious, this front pocket is more spacious.

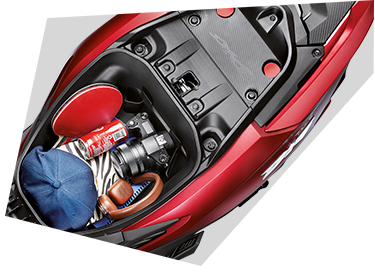

UNDERSEAT STORAGE
Lift your seat upright and you have a place to perfectly store your stuff. Be it your headphone, notebook or DSLR, put it in and ride wherever.
TechnicalSpecifications
Body Dimensions
| Length | 1808 mm |
|---|---|
| Width | 723 mm |
| Height | 1150 mm |
| Wheel Base | 1260 mm |
| Ground Clearance | 160 mm |
| Seat Length | 650 mm |
| Kerb Weight | 105 kg |
| Fuel Tank Capacity | 5.3 L |
Engine
| Type | Fan Cooled, 4 Stroke, SI Engine |
|---|---|
| Displacement | 109.51cc |
| Max Net Power | 5.71 kW @ 8000 rpm |
| Max Net Torque | 9 N-m @ 4750 rpm |
| Bore | 47.0 mm |
| Stroke | 63.1 mm |
| Fuel System | PGM-FI |
| Compression Ratio | 10.0+0.2 |
| Air Filter Type | Viscous Paper Filter |
| Starting Method | Kick/Self |
Transmission
Tyres & Brakes
| Tyre Size (Front) | 90/90-12 54J |
|---|---|
| Tyre Size (Rear) | 90/100-10 53J |
| Tyre Type (Front) | Tubeless |
| Tyre Type (Rear) | Tubeless |
| Brake Type & Size (Front) | Drum 130 mm |
| Brake Type & Size (Rear) | Drum 130 mm |
Frame and Suspension
| Frame Type | Under Bone |
|---|---|
| Front | Telescopic Suspension |
| Rear | 3-Step Adjustable, Spring Loaded Hydraulic |
Electricals
| Battery | 3Ah |
|---|---|
| Head Lamp | LED |
Price
| Model | Show Room Price |
|---|---|
| DIO STD | DIO DLX |
Accessories

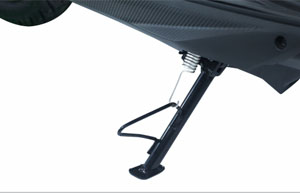

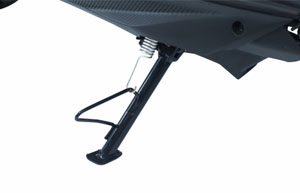

STAND SET, SIDE
Powder coated for long life Passes through welding penetration test Useful for riders making frequent stops
STAND SET, SIDE (WITH INHIBITOR)
Powder coated for long life Passes through welding penetration test Useful for riders making frequent stops

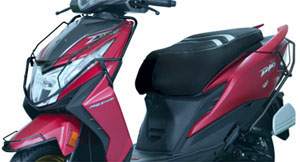

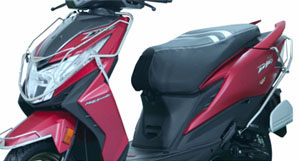

GUARD KIT - BLACK
Sleek & Stylish looks Rust resistant material Protect body from minor scratches & dents
GUARD KIT - SS
Sleek & Stylish looks Rust resistant material Protect body from minor scratches & dents

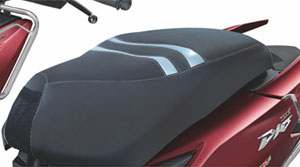

SEAT COVER - PREMIUM
Superior fit & finish Double stitching to ensure better life Foam embedded for increased comfort

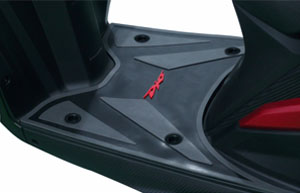

MAT FLOOR
Designer floor mat with model name embossing Locking mechanism Fully washable

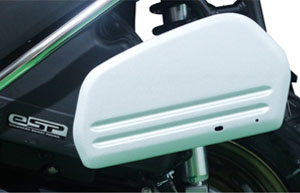

SET, SARI SIDE
Metallic paint finish for Step High quality material used for longer life Integrated with frame body

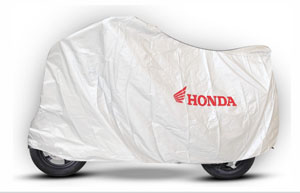

BODY COVER
Superior water resistance Protect vehicle body from UV rays Exclusive design

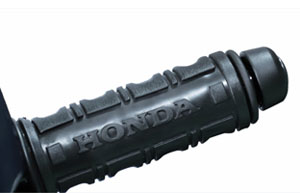

GRIP COVER “TYPE 1”
Premium look with better grip Exclusive design with Honda logo Superior fit and finish

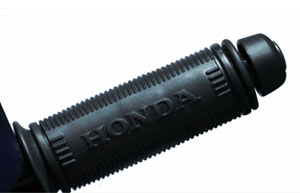

GRIP COVER “TYPE 2”
Premium look with better grip Exclusive design with Honda logo Superior fit and finish
