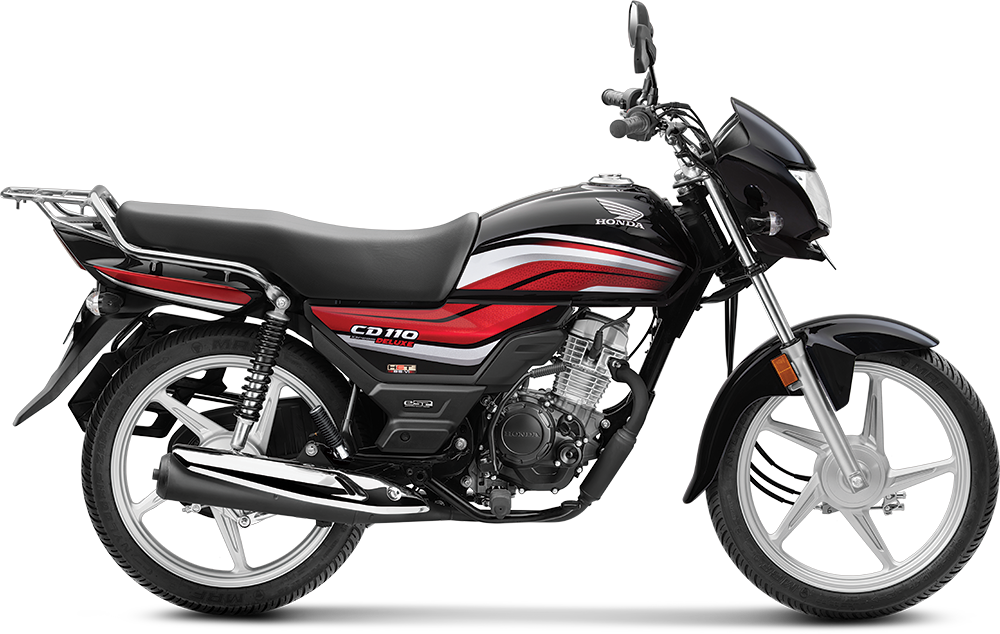

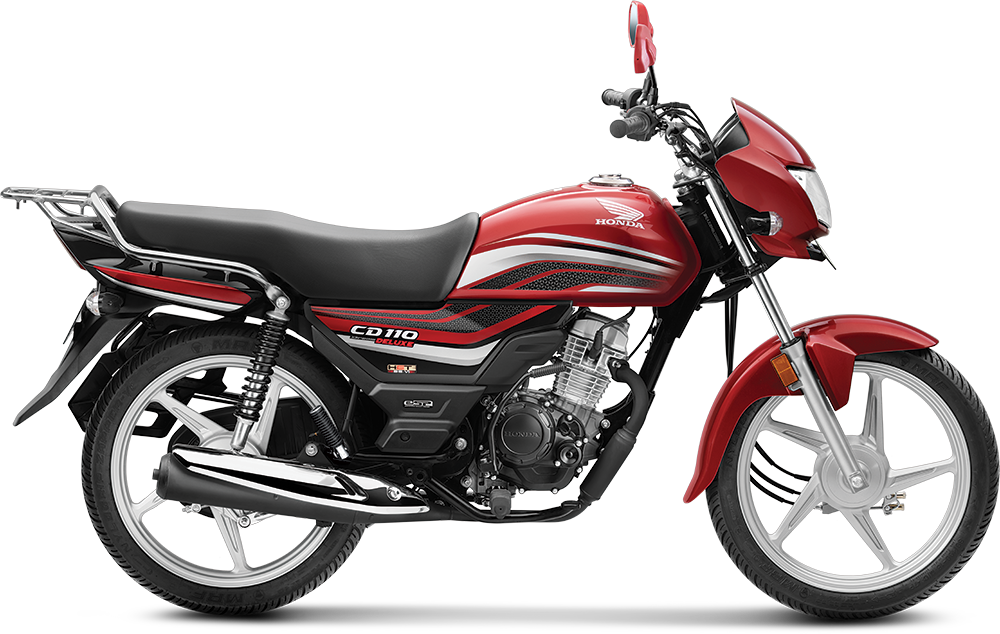

Choose TheColor You Love

Black

Athletic Blue Metallic

Geny Grey Metallic

Imperial Red Metallic

E-Brochure

Features

TechnicalSpecifications

Body Dimensions

Body Dimensions

Length 2044 mm
Width 736 mm
Height 1076 mm
Wheel Base 1285 mm
Ground Clearance 162 mm
Kerb Weight 112 kg
Seat Length 735 mm
Seat Height 790 mm
Fuel Tank Capacity 9.1L

Engine

Type 4 stroke, SI, BS-VI Engine
Displacement 109.51 cc
Max Engine Output 6.47 kW @ 7500 rpm
Max Torque 9.30 N-m @ 5500 rpm
Fuel System PGM- FI
Bore x Stroke 47 X 63.121 mm
Compression Ratio 10.1:1
Starting Method Self/Kick

Transmission

Clutch Type Multiplate Wet Clutch
No. of Gears 4

Tyres & Brakes

Tyre Size & Type (Front) 80/100-18 M/C 47P, Tubeless
Tyre Size & Type (Rear) 80/100-18 M/C 54P, Tubeless
Brake Type & Size (Front) Drum-130mm
Brake Type & Size (Rear) Drum-130mm

Frame and Suspension

Frame Type Diamond Type
Front Suspension Telescopic
Rear Suspension Hydraulic Type

Electricals

Battery 12V, 5Ah
Headlamp Halogen Bulb, DC

Price

Model Show Room Price
CD110 DREAM STD(BSVI)
CD110 DREAM DLX (BSVI)

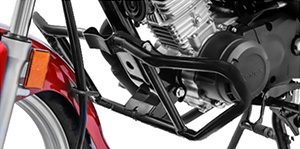

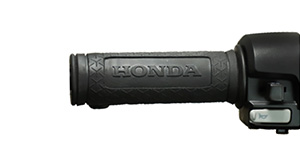

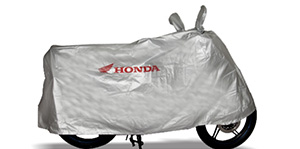

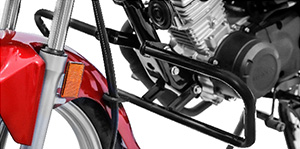

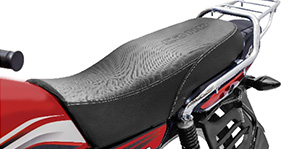

Accessories

Book a Test Ride
