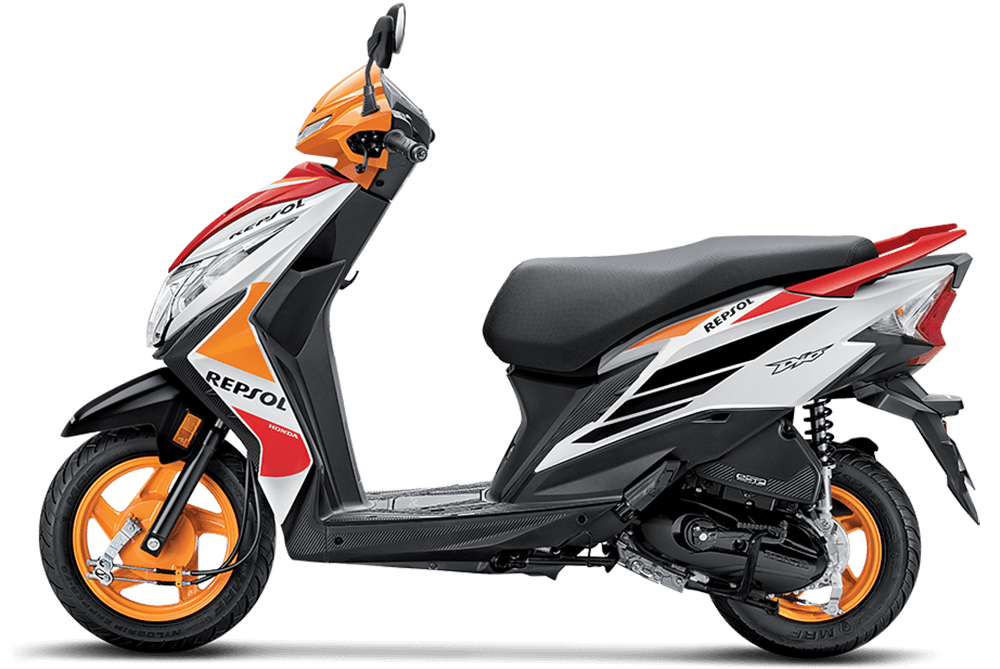

DIO Repsol Honda Edition

E-Brochure

Features

TechnicalSpecifications

Body Dimensions

Body Dimensions

Length 1808 mm
Width 723 mm
Height 1150 mm
Wheel Base 1260 mm
Ground Clearance 160 mm
Seat Length 650 mm
Kerb Weight 103 kg

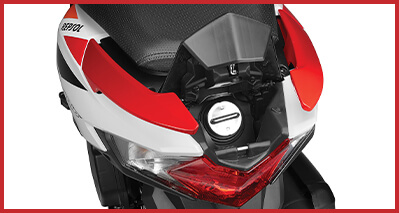

Fuel Tank Capacity 5.3 L

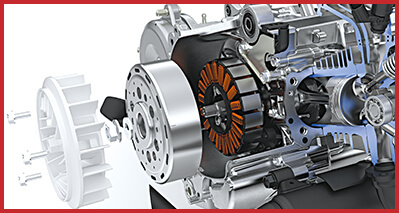

Engine

Type Fan Cooled, 4 Stroke, SI Engine
Displacement 109.51 cc
Max Net Power 5.71 kW @ 8000 rpm
Max Net Torque 9 N-m @ 4750 rpm
Bore 47.0 mm
Stroke 63.1 mm
Fuel System PGM-FI
Compression Ratio 10.0+0.2
Air Filter Type Viscous Paper Filter

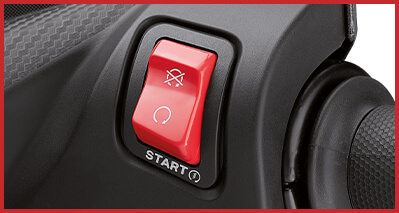

Starting Method Kick/self

Transmission

Clutch Type Automatic

Tyres & Brakes

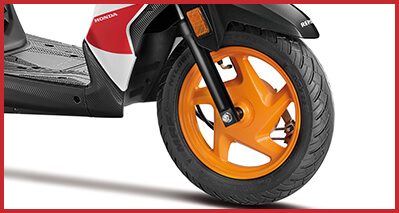

Tyre Size (Front) 90/90-12 54J
Tyre Size (Rear) 90/100-10 53J
Tyre Type (Front) Tubeless
Tyre Type (Rear) Tubeless

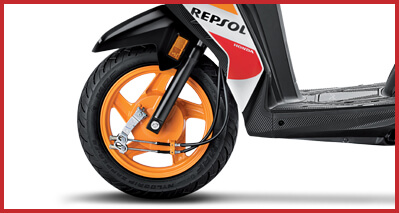

Brake Type & Size (Front) Drum 130mm
Brake Type & Size (Rear) Drum 130mm

Frame and Suspension

Frame Type Under Bone
Front Telescopic Suspension
Rear 3-Step Adjustable Spring Loaded Hydraulic

Electricals

Battery 3.0 Ah

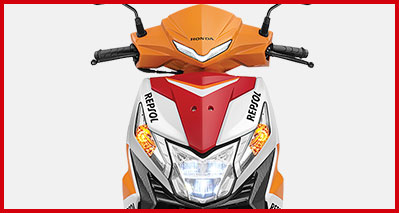

Head lamp LED

Price

Model Show Room Price
Dio Repsol Edition
