Choose TheColor You Love

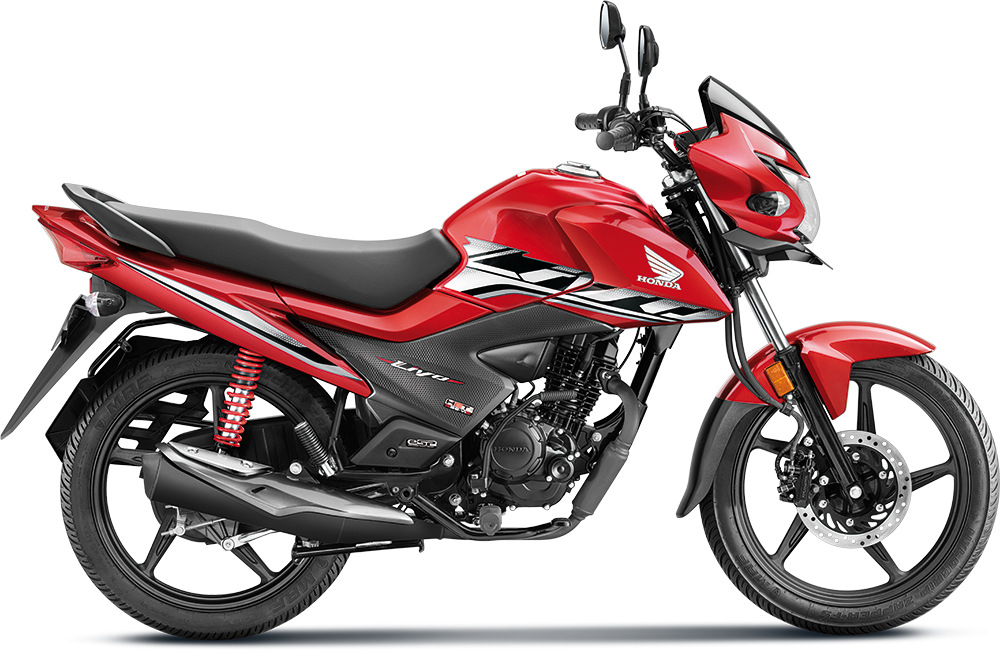

Imperial Red Metallic

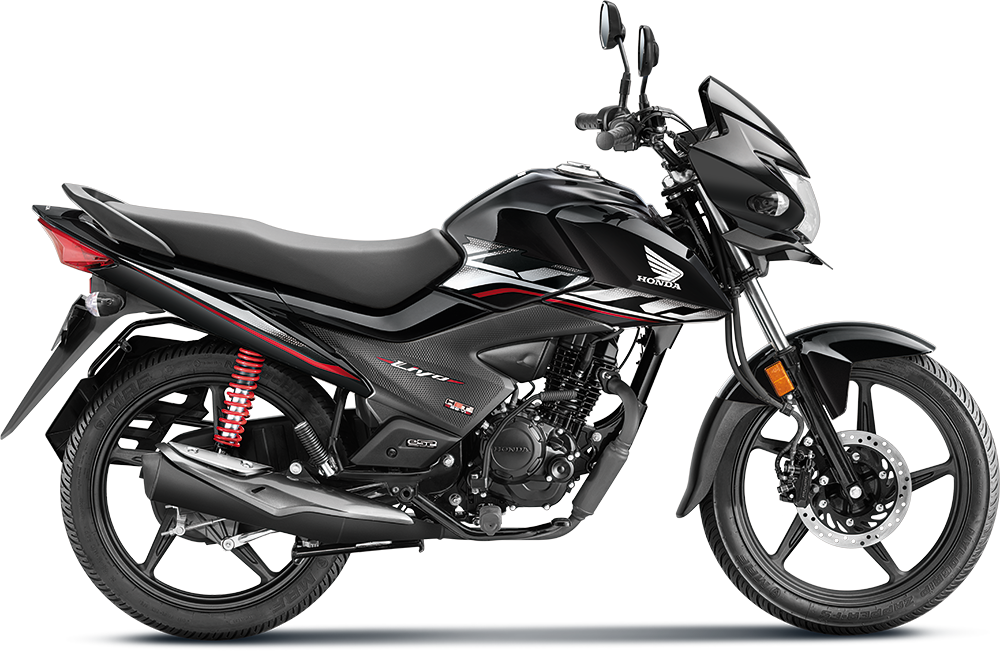

Black

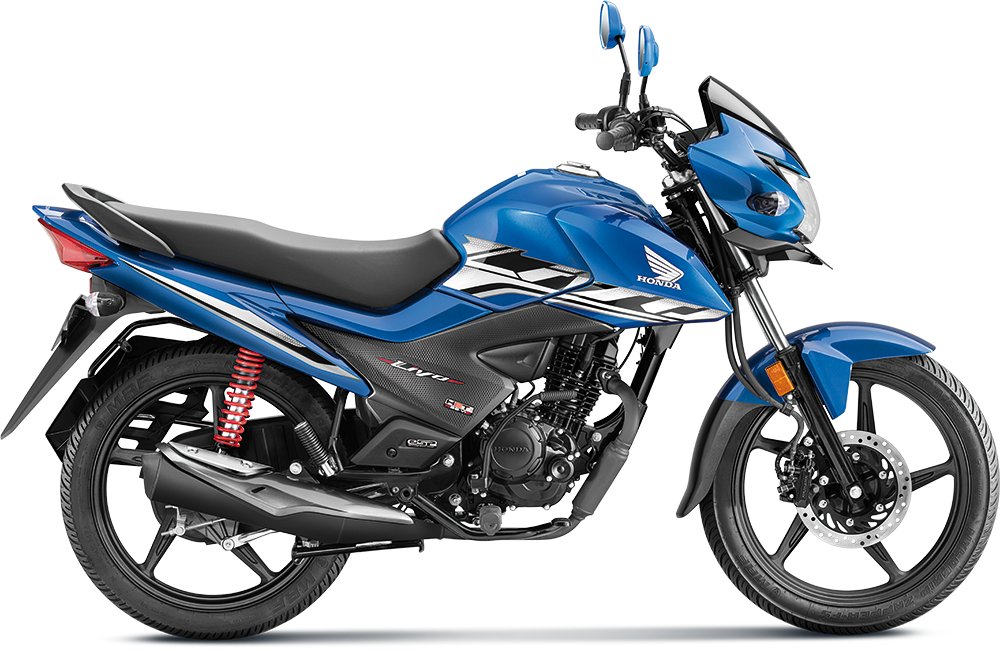

Athletic Blue Metallic

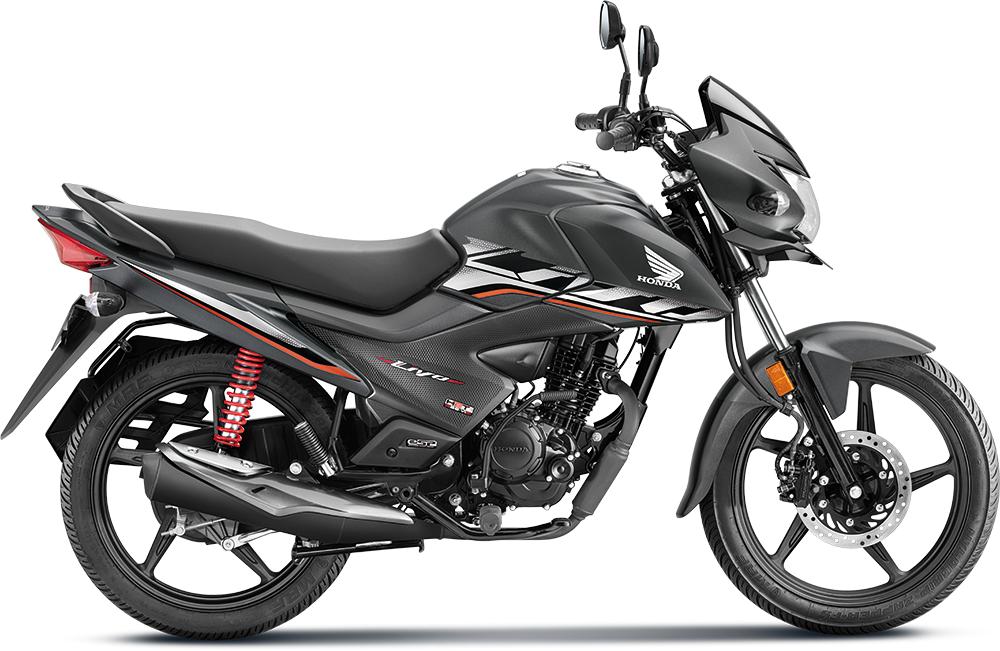

Matte Axis Gray Metallic

E-Brochure

Features

TechnicalSpecifications

Body Dimensions

Body Dimensions

Length 2020 mm
Width 751 mm
Height 1116 mm
Wheel Base 1278 mm
Ground Clearance 163 mm
Kerb Weight 115 kg
Seat Length 690 mm
Seat Height 790 mm
Fuel Tank Capacity 9 L

Engine

Type Air Cooled, 4 Stroke, SI, BS-VI Engine
Displacement 109.51 cc
Max Engine Output 6.47 kW @7500 rpm
Max Torque 9.30 N-m @ 5500 rpm
Fuel System PGM-FI
Bore X Stroke 47 x 63.121 mm
Compression Ratio 10.1:1
Starting Method Self/Kick

Transmission

Clutch Type Multiplate Wet Clutch
No. of Gears 4 Gear

Tyres & Brakes

Tyre Size & Type (Front) 80/100-18 M/C 47P, Tubeless
Tyre Size & Type (Rear) 80/100-18 M/C 54P, Tubeless
Brake Type & Size (Front) Disc-240 mm, Drum-130 mm
Brake Type & Size (Rear) Drum-130 mm

Frame and Suspension

Frame Type Diamond Type
Front Suspension Telescopic
Rear Suspension Hydraulic Type

Electricals

Battery 12V, 5Ah
Headlamp Halogen Bulb, DC

Price

Model Show Room Price
LIVO DRUM
LIVO DISC

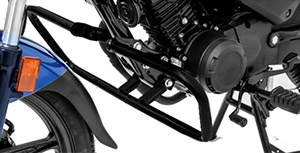

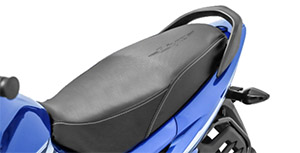

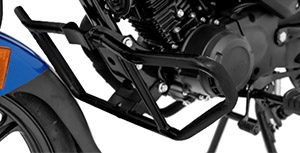

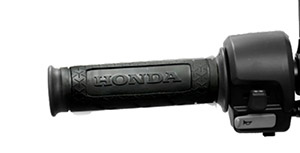

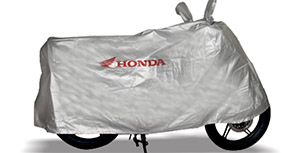

Accessories
