Choose TheColor You Love

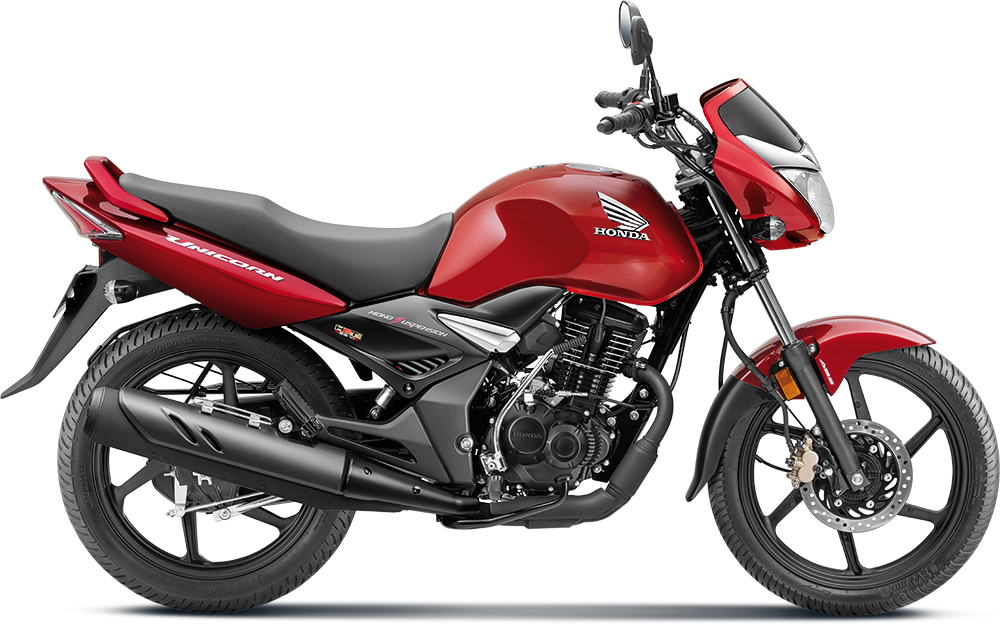

Imperial Red Metallic

Mat Axis Gray Metallic

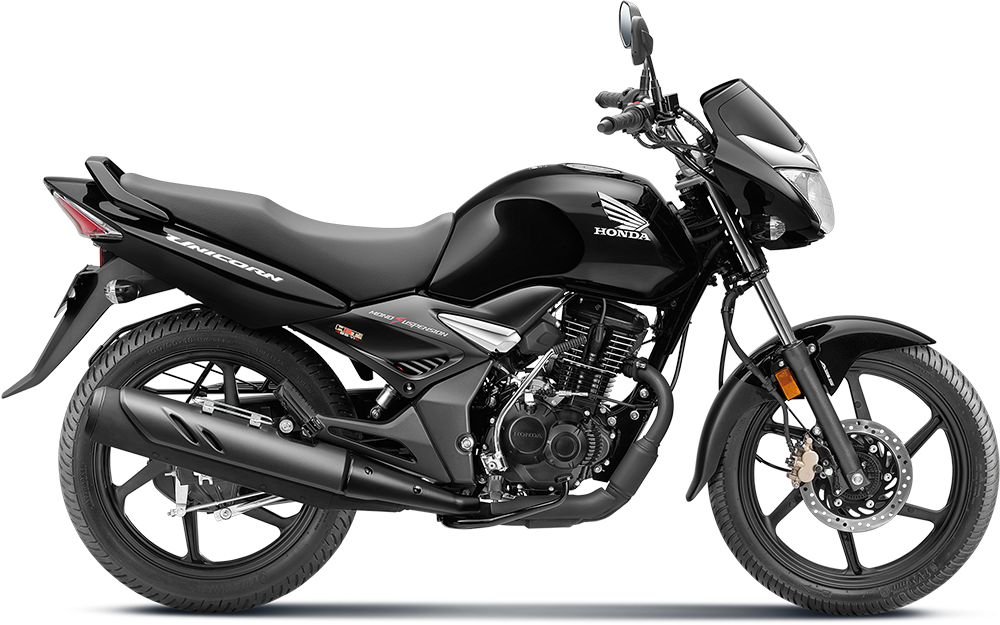

Pearl Igneous Black

E-Brochure

Features

TechnicalSpecifications

Body Dimensions

Body Dimensions

Length 2081 mm
Width 756 mm
Height 1103 mm

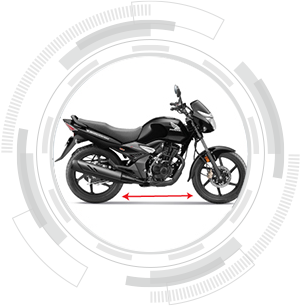

Wheel Base 1335 mm

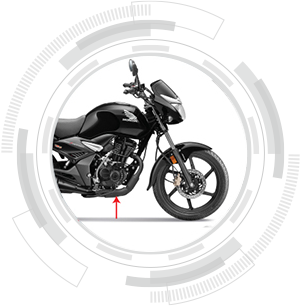

Ground Clearance 187 mm
Kerb Weight 140 kg

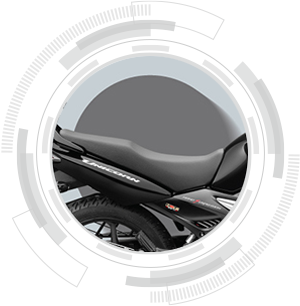

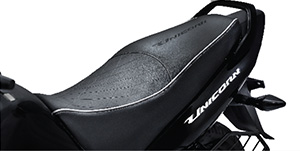

Seat Length 715 mm
Seat Height 798 mm
Fuel Tank Capacity 13 L

Engine

Type 4 stroke, SI, BS-VI Engine
Displacement 162.7 cc
Max Engine Output 9.5 Kw @7500 rpm
Max Torque 14 N-m @5500 rpm
Fuel System PGM- FI
Bore X Stroke 57.3 X 63.1 mm
Compression Ratio 10±0.2

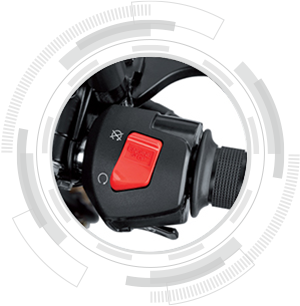

Starting Method Self/Kick

Transmission

Clutch Type Multiplate Wet Clutch
No. Of Gears 5

Tyres & Brakes

Tyre Size & Type (Front) 80/100-18 M/C 47P, Tubeless

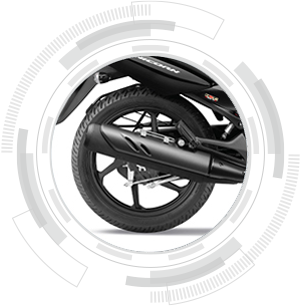

Tyre Size & Type (Rear) 100/90-18 M/C 56P, Tubeless

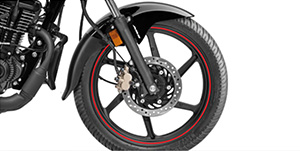

Brake Type & Size (Front) Disc - 240 mm
Brake Type & Size (Rear) Drum - 130 mm

Frame and Suspension

Frame Type Diamond Type
Front Suspension Telescopic

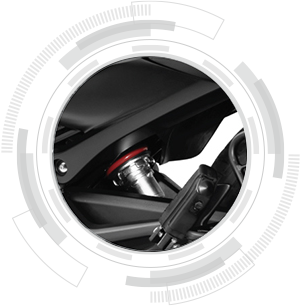

Rear Suspension Hydraulic Type (Monoshock)

Electricals

Battery 12V, 4Ah

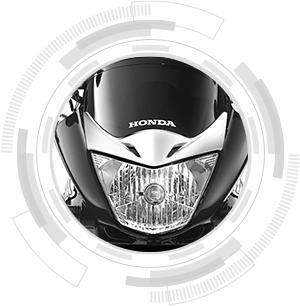

Head Lamp Halogen Bulb

Price

Model Show Room Price

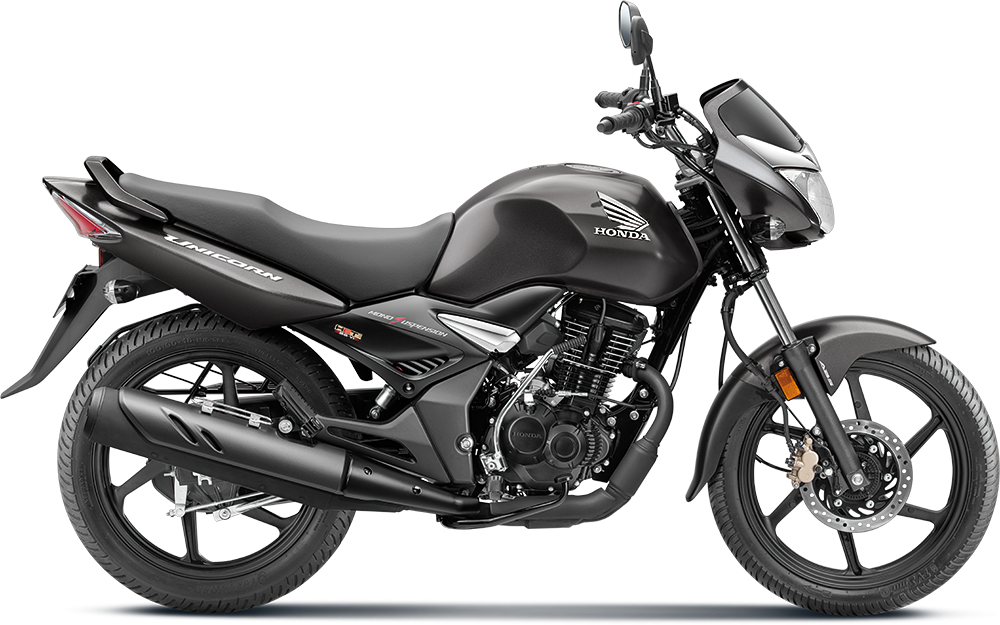

Unicorn BS-VI

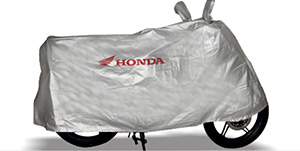

Accessories
