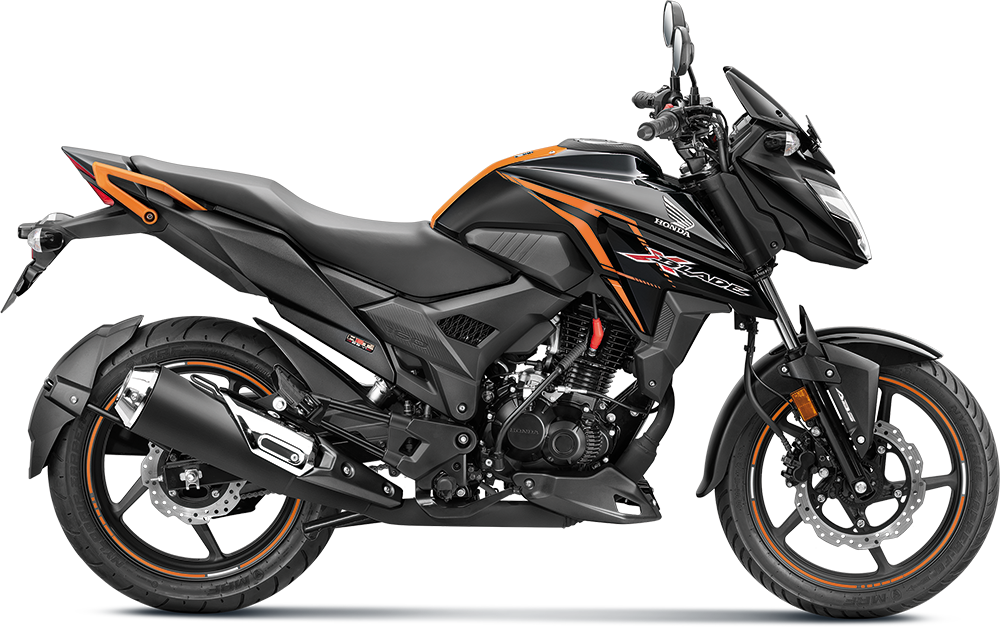

Choose TheColor You Love

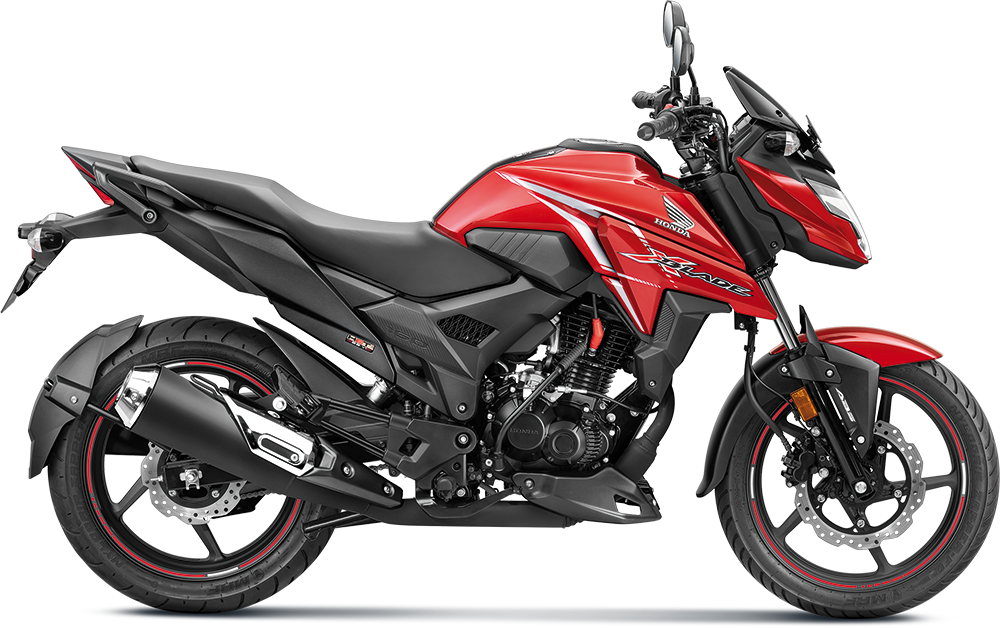

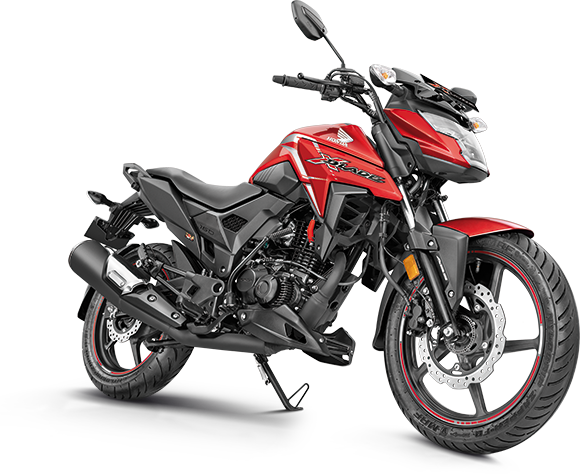

Pearl Spartan Red

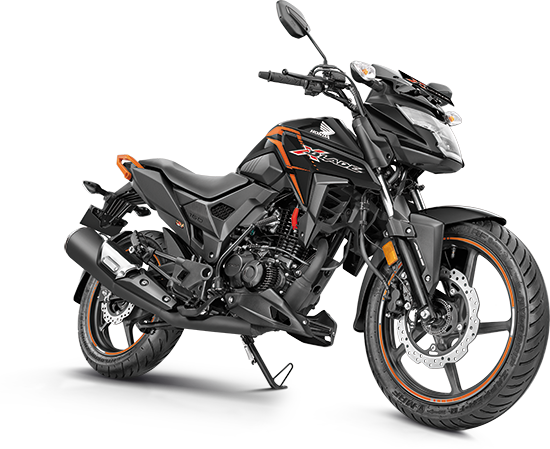

Pearl Igneous Black

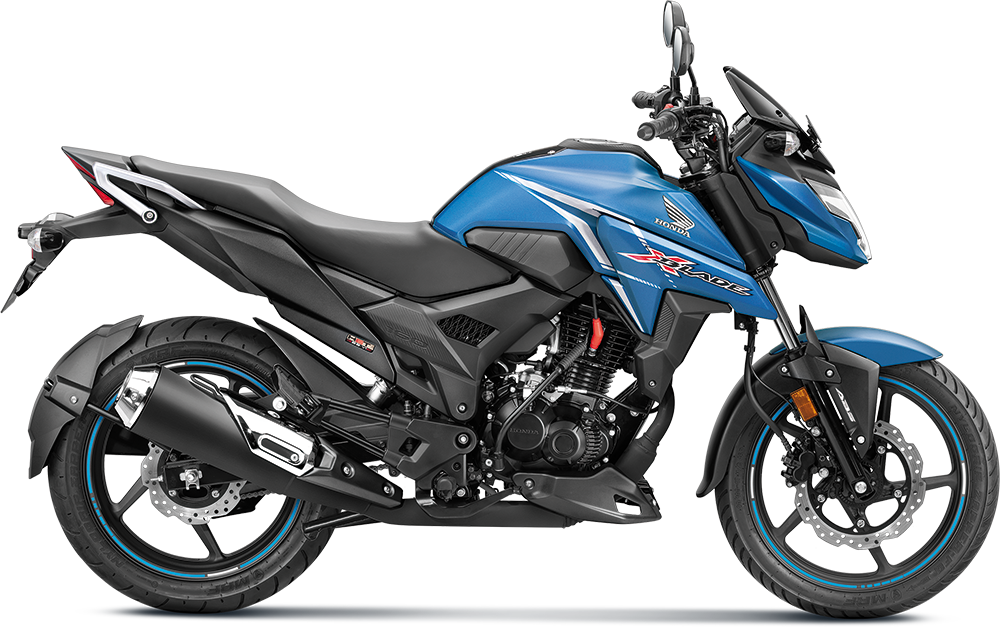

Matte Marvel Blue Metallic

Matte Axis Grey Metallic

E-Brochure

Features

TechnicalSpecifications

Body Dimensions

Body Dimensions

Length 2013 mm
Width 786 mm
Height 1115 mm
Wheel Base 1347 mm
Ground Clearance 160 mm
Kerb Weight Single Disc - 143 Kg, Double Disc - 144 Kg

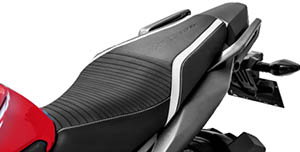

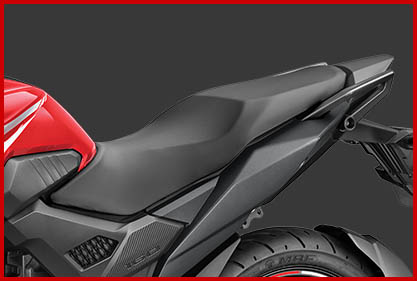

Seat Length 582 mm
Seat Height 795 mm

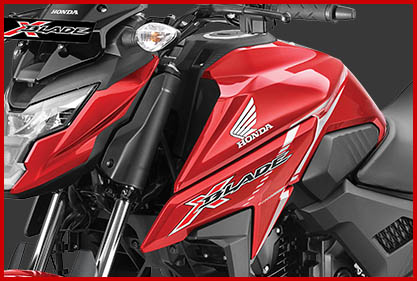

Fuel Tank Capacity 12 L

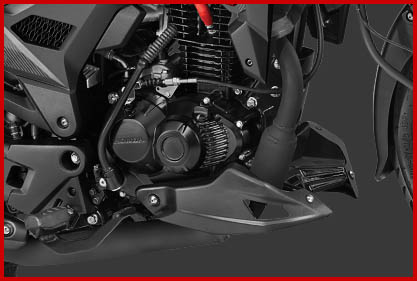

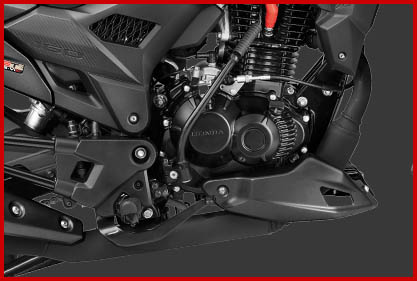

Engine

Type 4 Stroke, SI, BS-VI Engine
Displacement 162.71 cc
Max Engine Output 10.2 kW @ 8000 rpm
Max Torque 14.7 N-m @ 5500 rpm
Fuel System PGM-FI
Bore X Stroke 57.300 x 63.096 mm
Compression Ratio 10.0:1
Starting Method Self/Kick

Transmission

Clutch Type Multiplate Wet Clutch
No. Of Gears 5 Gears

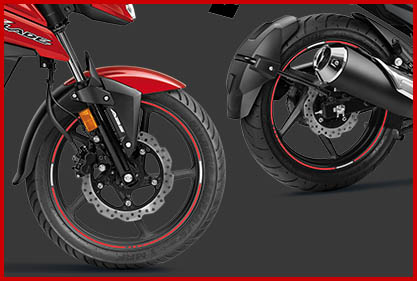

Tyres & Brakes

Tyre Size & Type (Front) 80/100-17 M/C 46P (Tubeless)

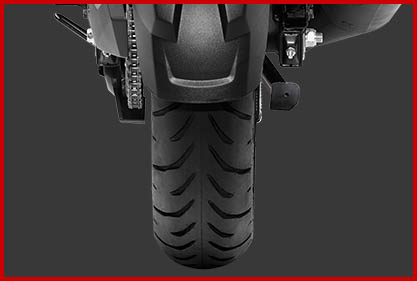

Tyre Size & Type (Rear) 130/70-17 M/C 62P (Tubeless)

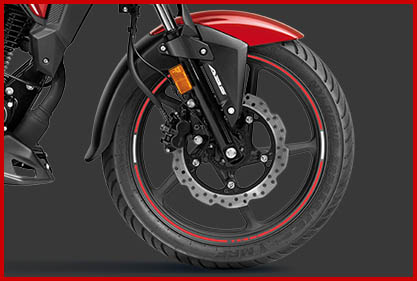

Brake Type & Size (Front) Disc - 276 mm
Brake Type & Size (Rear) Drum - 130 mm, Disc - 220 mm

Frame and Suspension

Frame Type Diamond Type
Front Suspension Telescopic

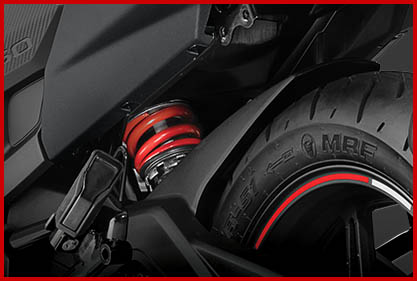

Rear Suspension Hydraulic, Monoshock

Electricals

Battery 12V, 4.0 Ah

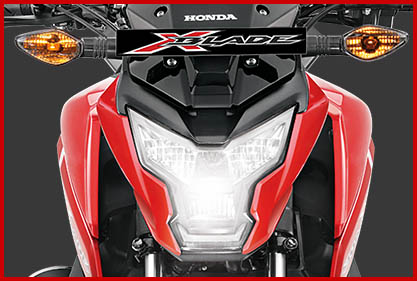

Headlamp LED

Price

Model Show Room Price
XBLADE DUAL
XBLADE DISC

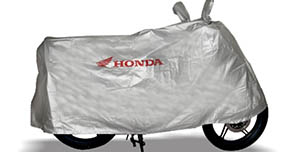

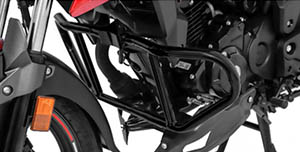

Accessories
