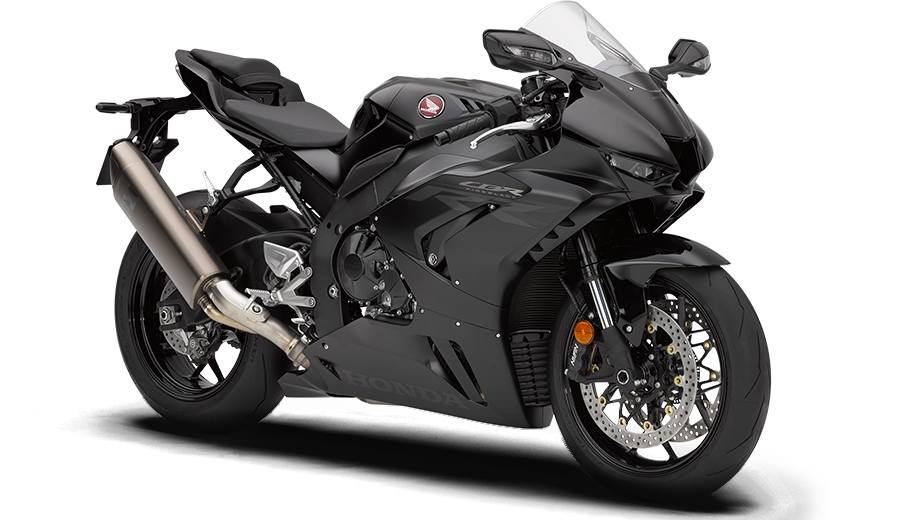

MATTE PEARL MORION BLACK (STANDARD)

GRAND PRIX RED (STANDARD)

E-Brochure

Features

TechnicalSpecifications

Body Dimensions

Body Dimensions

Carburation PGM-DSFI
Fuel Tank Capacity 16.1L
Dimensions (L x W x H) 2100 x 745 x 1140mm
Wheelbase 1455mm
Caster Angle 24º
Trail 102mm
Seat Height 830mm
Ground Clearance 115mm
Kerb Weight 201Kg

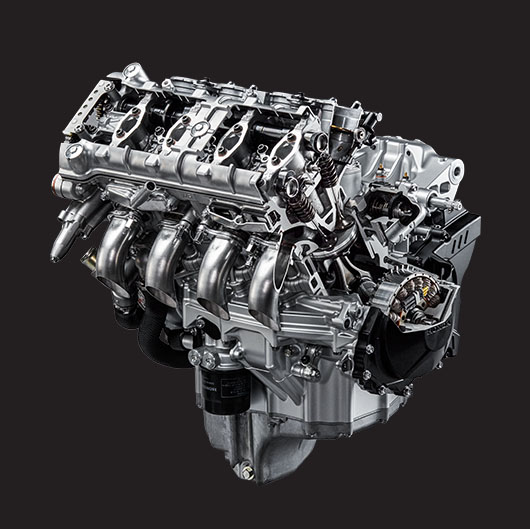

Engine

Type Liquid-cooled 4-stroke 16-valve DOHC Inline-4
Engine Displacement (cm³) 1000cc
No. of Valves per Cylinder 4
Bore Stroke (mm) 81mm x 48.5mm
Compression Ratio 13:1
Max. Power Output 160Kw @ 14,500rpm
Max. Torque 113Nm @ 12,500rpm
Oil Capacity 4.0L

Transmission

Clutch Type Wet, multiplate clutch with diaphragm spring with assist slipper
Transmission Type 6-speed
Final Drive Chain

Tyres & Brakes

Rim Size Front 17 inch x 3.5
Rim Size Rea 17 inch x 6.0
Tyres Front 120/70-ZR17 Pirelli Diablo Supercorsa SP Bridgestone RS11
Tyres Rear 200/55-ZR17 Pirelli Diablo Supercorsa SP Bridgestone RS11
ABS System Type 2 Channel
Front 330mm disc with radial-mount 4-piston Nissin caliper
Rear 220mm disc with 2-piston Brembo caliper

Frame and Suspension

Type Aluminium composite twin spar

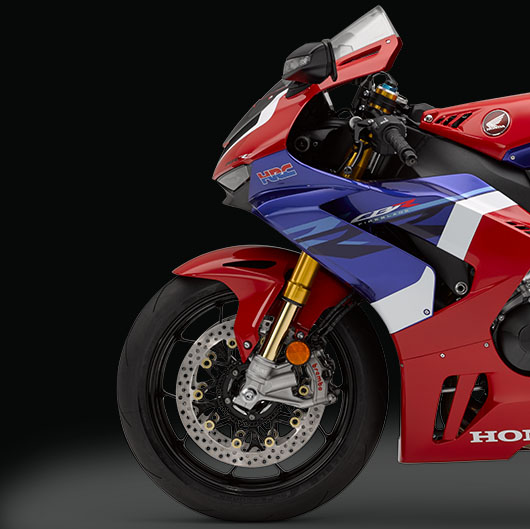

Type Front Showa Telescopic Inverted Fork with an inner tube diameter of 43mm, and a Big Piston Front Fork with preload, compression and rebound adjustment, 120mm stroke.

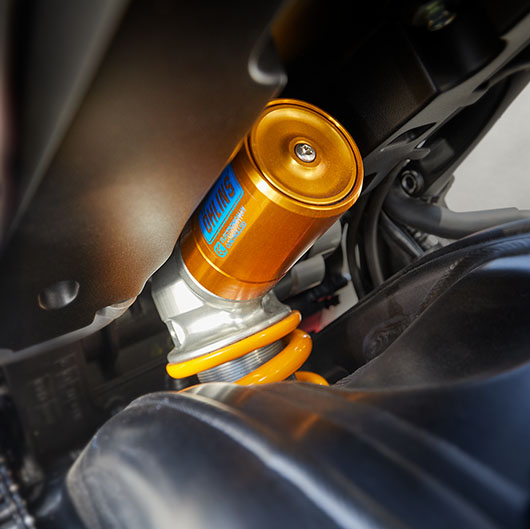

Type Rear Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload, stepless compression and rebound damping adjustment, 137mm stroke. Showa Balance-Free Rear Cushion with preload, compression and rebound adjustment.

Electricals

Starter Electric
Battery Capacity 12-6 YTZ7S

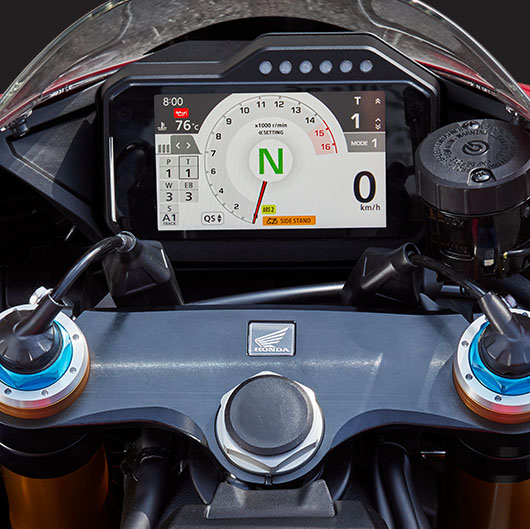

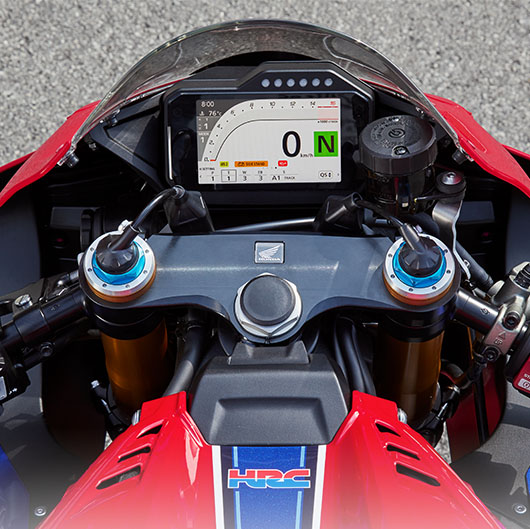

Instruments TFT-LCD
Security System HISS
Headlight LED
Taillight LED
