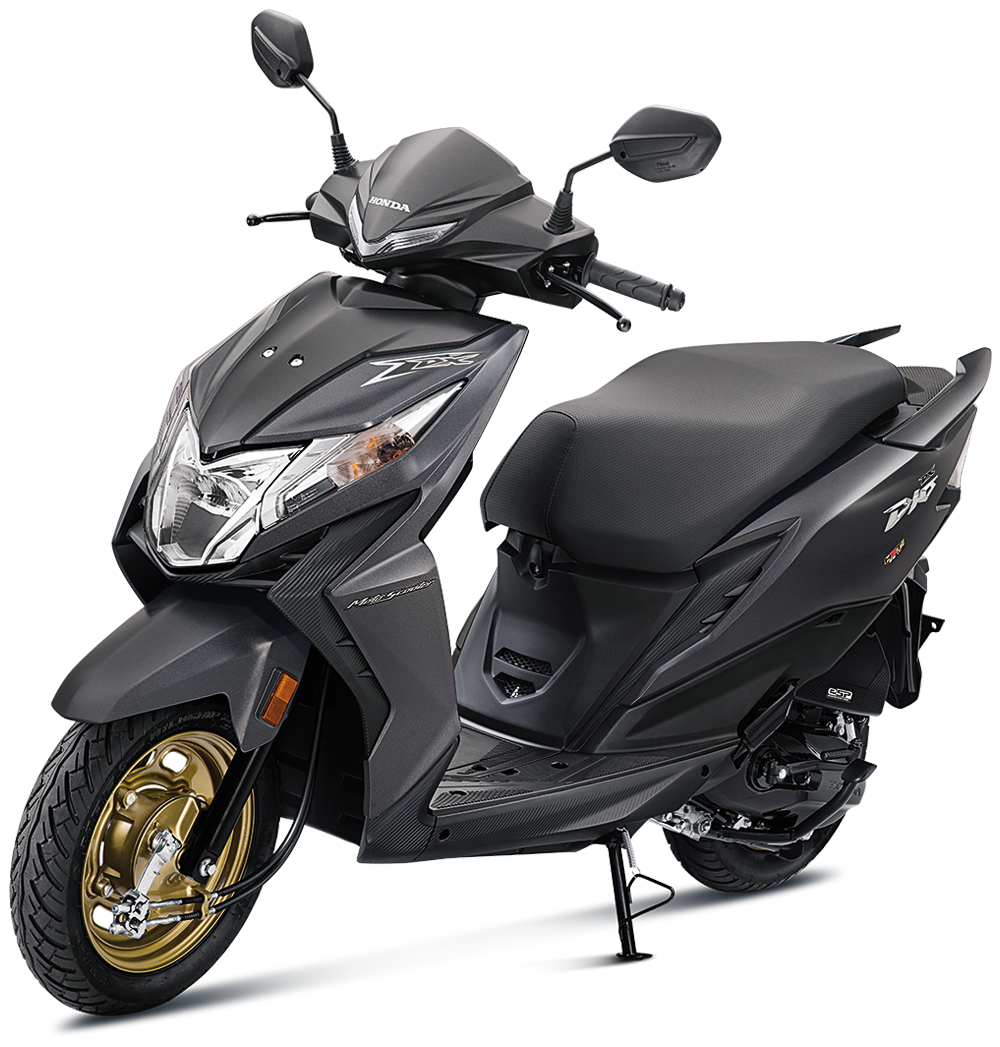

Choose TheColor You Love

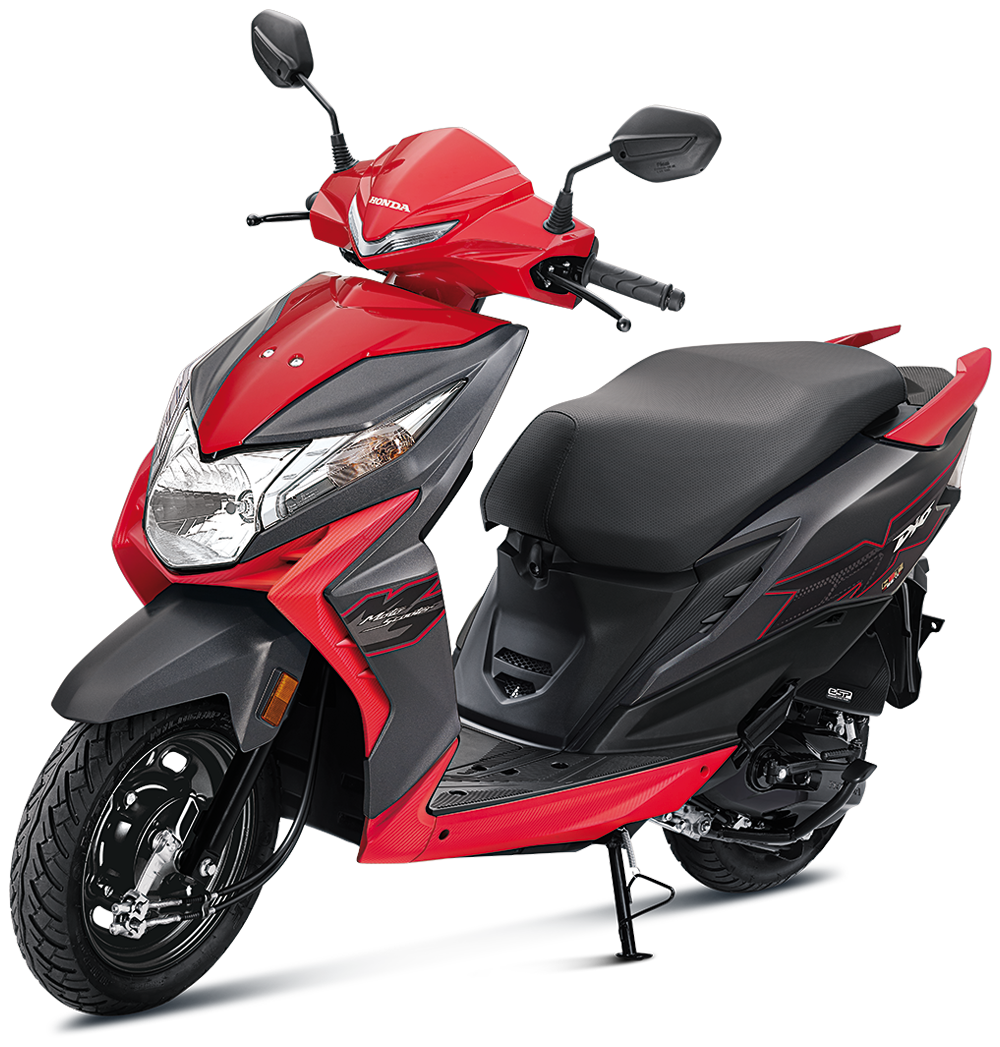

Sports Red

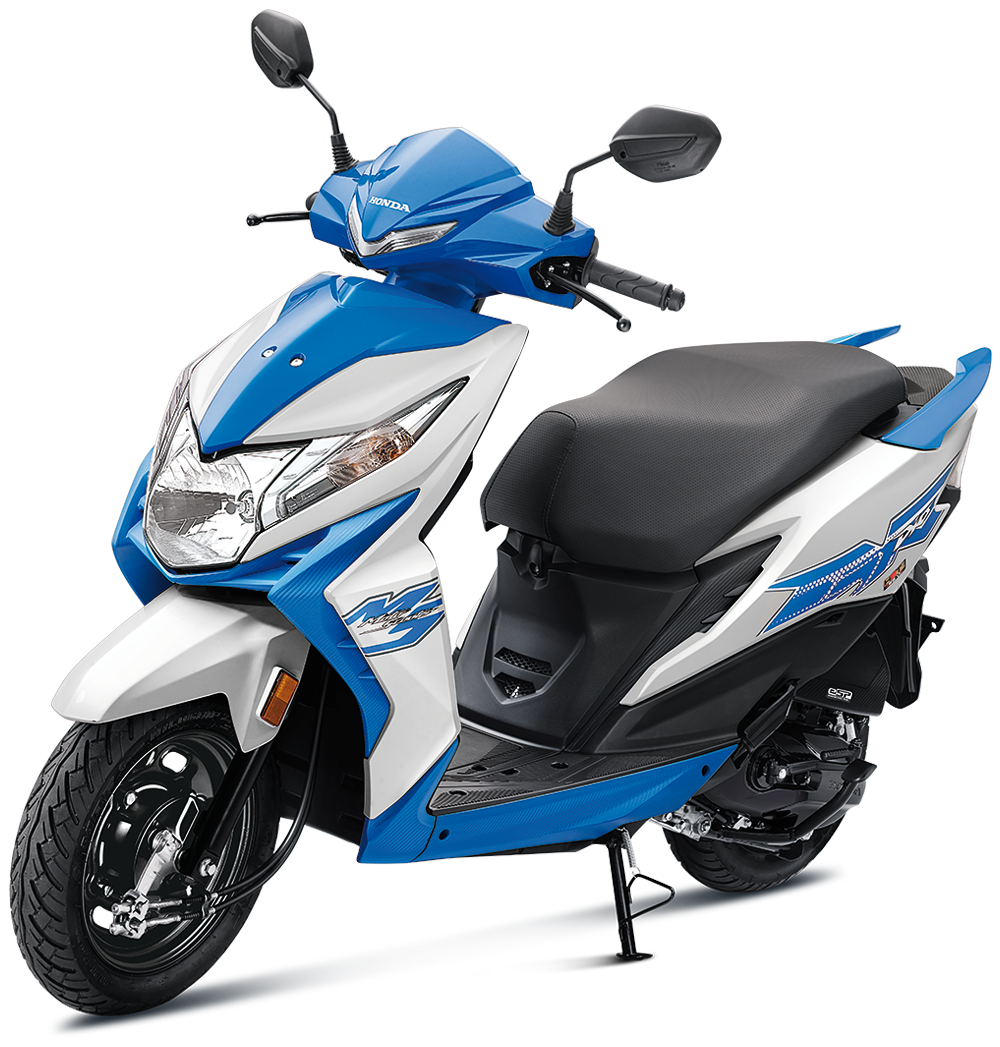

Candy Jazzy Blue

Mat Axis Grey Metallic

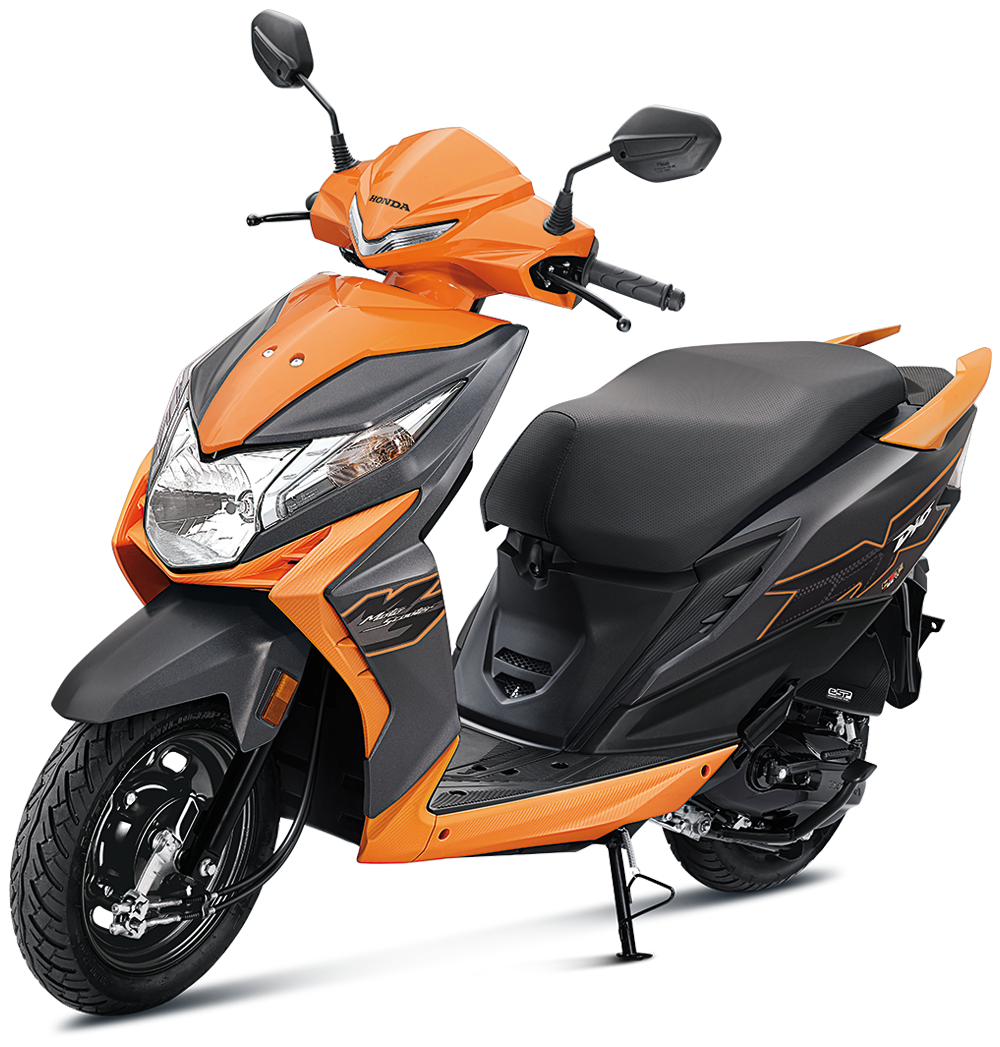

Vibrant Orange

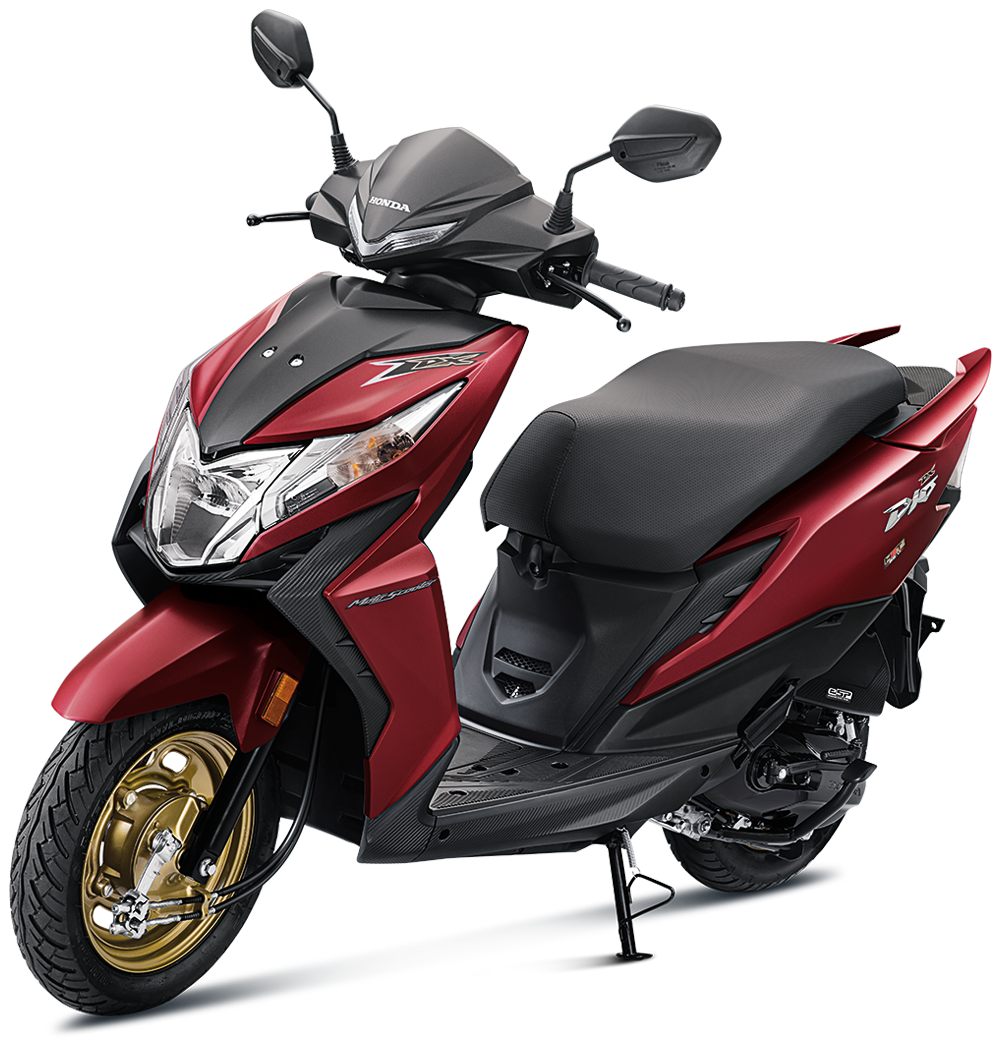

Mat Sangria Red Metallic

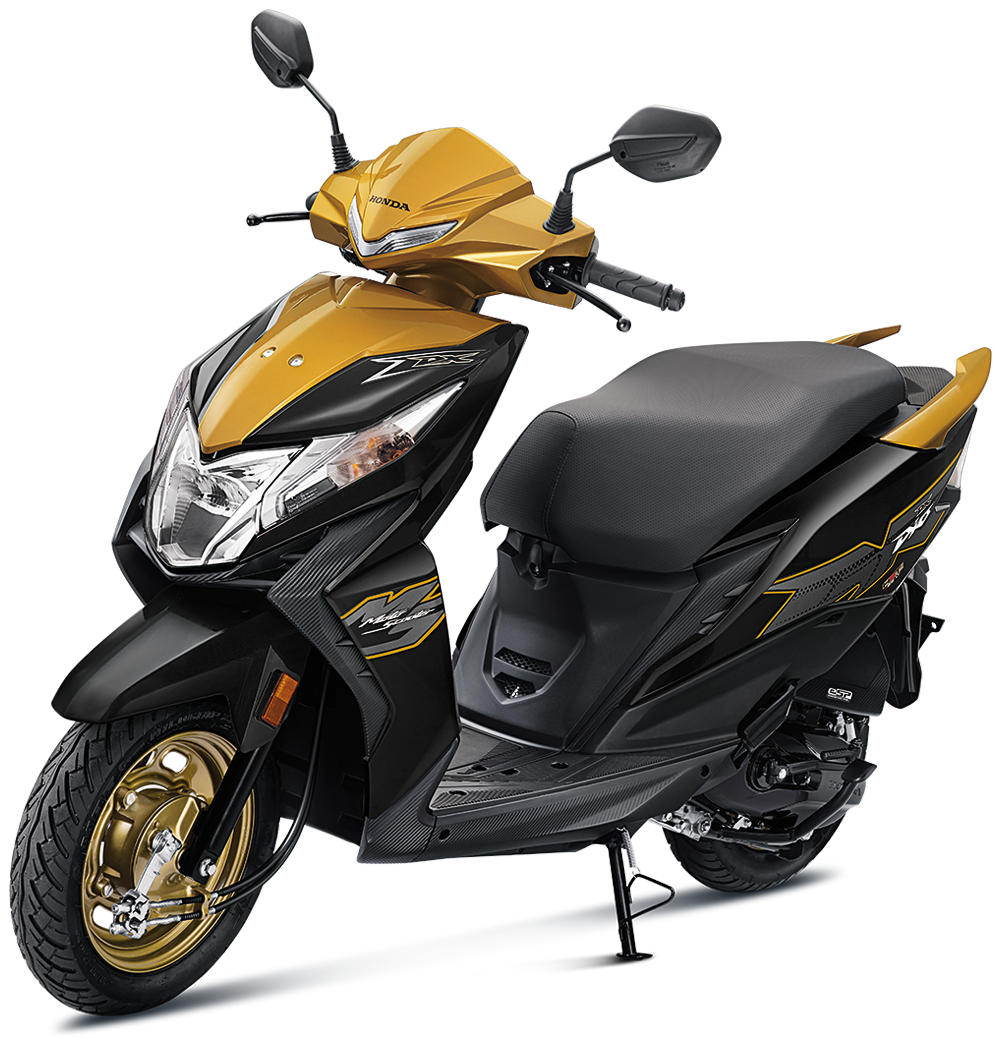

Dazzle Yellow Metallic

Mat Axis Grey Metallic

E-Brochure

Features

TechnicalSpecifications

Body Dimensions

Body Dimensions

Length 1808 mm
Width 723 mm
Height 1150 mm
Wheel Base 1260 mm
Ground Clearance 160 mm

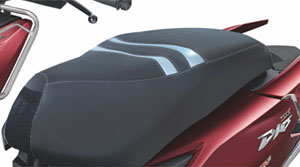

Seat Length 650 mm
Kerb Weight 105 kg
Fuel Tank Capacity 5.3 L

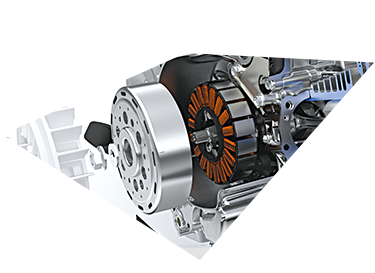

Engine

Type Fan Cooled, 4 Stroke, SI Engine
Displacement 109.51cc
Max Net Power 5.71 kW @ 8000 rpm
Max Net Torque 9 N-m @ 4750 rpm
Bore 47.0 mm
Stroke 63.1 mm
Fuel System PGM-FI
Compression Ratio 10.0+0.2
Air Filter Type Viscous Paper Filter

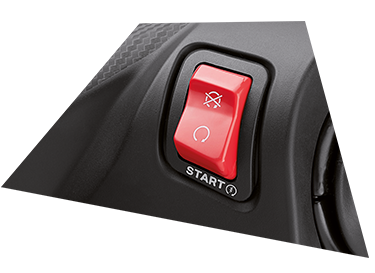

Starting Method Kick/Self

Transmission

Clutch Type Automatic

Tyres & Brakes

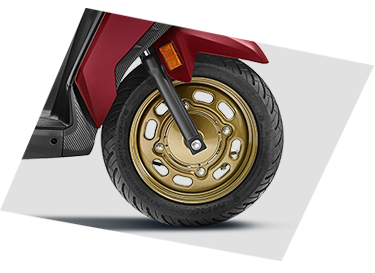

Tyre Size (Front) 90/90-12 54J
Tyre Size (Rear) 90/100-10 53J
Tyre Type (Front) Tubeless
Tyre Type (Rear) Tubeless
Brake Type & Size (Front) Drum 130 mm
Brake Type & Size (Rear) Drum 130 mm

Frame and Suspension

Frame Type Under Bone
Front Telescopic Suspension
Rear 3-Step Adjustable, Spring Loaded Hydraulic

Electricals

Battery 3Ah

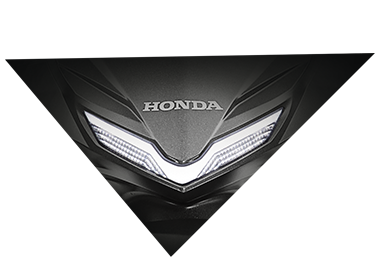

Head Lamp LED

Price

Model Show Room Price
DIO STD
DIO DLX

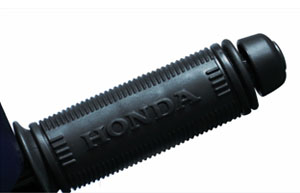

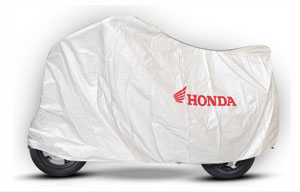

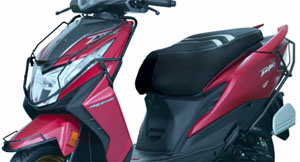

Accessories

Book a Test Ride
